Shenzhen MingYan Technology Co., Ltd 10-year Experience Focus on SMT Tech. SMT Production Line Professional Manufacturer.
11 Years
| Ask Lasest Price | |
| Brand Name : | Charmhigh |
| Model Number : | 635 |
| Certification : | CE |
| Price : | $2800 |
| Payment Terms : | T/T |
| Supply Ability : | 100 Per month |
| Delivery Time : | 5-8 days |

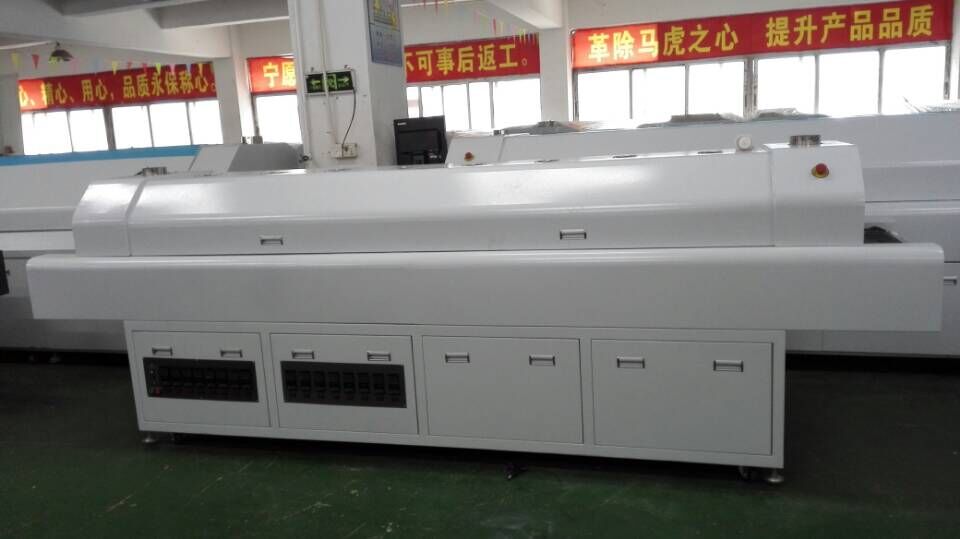

635 Vertical Reflow Oven 12 Temp. Zones (upper6+ bottom 6) 2200*400mm
Smt Reflow Soldering Machine Lead-free
1.Competitive price for quality
2. More than 10 years manufacturing experience
3.One of the Leader of Smt machine manufacurers in China
| Model No. | 635 |
| Number of Heating Zones | Up 6 + Bottom 6 |
| Length of Heating Zones | 2200mm |
| Heating Pattern | Up: Hot air; Bottom: Hot air (Forced convection of hot air, Taiwan SAYA motor) |
| Number of Cooling Zones | 2 Plasma DC Fan |
| Max.Width Of PCB | 350mm(stainless steel mesh belt) |
| Conveyor Direction | L→R |
| Conveyor Height | 880±20mm |
| Transport Mode | Mesh Belt |
| Conveyor Speed Range | 0-2200mm/min |
| Power Supply | 5 Wire, 3 Phase, 380V 50/60Hz |
| Start Power | 22KW |
| Power Consumption | Approx 3.5KW |
| Warming Time | Approx 15-20 mins |
| Temp. Setting Range | Room Temp.- 310℃ |
| Temperature Control Method | Instrument-controlled |
| Temperature Difference Between Adjacent Zone | 70 ℃, can correspond to the highest standards of lead-free process. |
| Temperature Control Precision | ±2℃ |
| Temperature Deviation on PCB | ±2℃ |
| Abnormal Alarm | Temperature abnormal (too high or too low after the constant temperature keeping) |
| Open Way | Manual |
| Dimension(L*W*H)mm | 3500*860*1450MM |
| Weight | Approx 600Kg |
Pictures as follows:
Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct
supply.
We provide online Q/A and troubleshooting support and technical
advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us in YouTube: www.youtube.com/kimiLiuCharmhigh
If you want to see more information and videos, please contact us
by E-mail.
We will response you at the first time.
|
|
