Hottest CHMT36VA + Vibration feeder p&p machine 0402-5050,SOP, QFN..​ 220v 110v

CHMT36VA working video from customer Youtube:

CHMT36VA working video from Italy:
www.youtube.com/watch?v=FJoGJK79luU

Direct buy online from Aliexpress store:
www.aliexpress.com/item/32803566747.html?spm=2114.12010612.8148356.3.3f4e17fbQIrG9G

PayPal also accepted, our PayPal account is: sales@charmhigh-tech.com
Paypal link: paypal.me/Charmhigh

Specifications:

Competitive Advantage:

1. Convenient software, Embedded Linux System of the machine, very stable industry main board, independent operation, no need external computer, operation more easy and convenient.
2. Top and bottom two cameras CCD system correct the position of each components very accurate, especially for IC (max 22*22mm).
3. Machine support all different kinds of components, from 0402, 0603- QFN, as well as cut tape, tube IC, or bulk IC. Machine can place multi kinds of PCB.
4. It has flexible PCB clamping fixture, and it has custom IC tray, front bulk IC feeder, very convenient.
5. The vision also can second correction machine origin point, make sure origin point correct.
6. 2 heads/ 4 heads with high precise Juki Nozzles with magnet, no need to disassemble with wrench, nozzles can rotate angle -180 degree~ +180 degree. Placing height is adjustable. 4 serials machine max components height is 5mm and 5 serails machine max height is 10mm.
7. 4 serails machine's pull pin automatically return to avoid nozzles broken, pull pin not be stuck. 5 serial's machine using Yamaha pneumatic feeder auto feeding, more faster speed.
8. Z axis detection, placement head can auto detect the height and angle, auto back to origin to prevent any broke.
9. Closed-loop control, X,Y Axis with encoder, motor never lose steps.
10. PCB calibrate by two vision cameras (machine will auto find 2 points), amend the offset of PCB. Only calirbate 2 points, rest components will auto correction, calibration can be rapidly and accurately for PCB, do not need to care about offset, no need to calculate the input.
11. Comes with vacuum detection, if one component suck crooked, it will automatically throw it to the feed zone, then pick a new one to mount again.
12. Comes with vision detection, camera will auto correct component angle and place onto PCB board in right place. If heads not picking up components, camera will detect it and go back to pick again, 3 times not picking, machine will alarm and stop.
13. If lack material it will automatic detection, then alarm; after supply material, then continue working, no need to re-start.
14. Support any number of PCB batch.
15. If no PCB file, or don’t use software load out work file, you can create a new file to program.

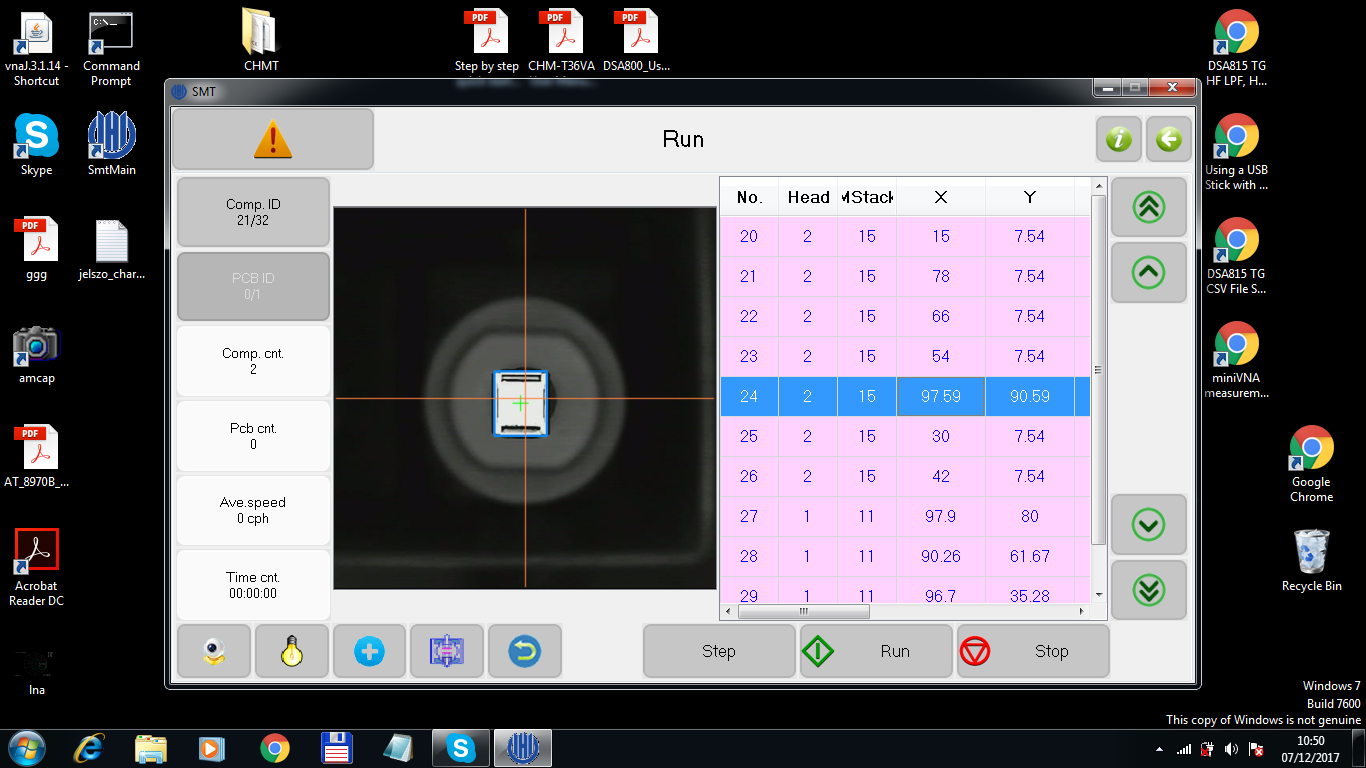

16. Comes with convert tool (PC version), edit work file in computer and load work file into machine by USB port, quick and convenient.
17. Support single step.

Detail Real pictures: (100% Real)

From this link, you will get: (Need to prepare the external PC by yourself):

1) Pick and Place Machine CHMT36VA 1 + vibration feeder*1
2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
3) 8G USB driver 1
4) Power Cord 1
5) Pull needle 2
6) Solenoid for pull needle 1
7) Camera positioning adjust black board 1
8) Hex wrench 6
9) Tweezers 1
10) Brush 1
11) Pen for touch screen 1
12) Fixture for IC tray 4
13) Grease 1
14) English user manual 1

Kindly note:
The pick and place machine is complete set with all accessories included in the package, QC passed.
It is all-in-one machine, ready to use!
You can use it when you receive it. Good after-sale tech support, please purchase it with confidence.
Enjoy with your pick and place machine!

Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com

Welcome to follow us in YouTube: www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA/videos

If you want to see more information and videos, please contact us by E-mail.
We will response you at the first time.

Our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.
