Shenzhen MingYan Technology Co., Ltd 10-year Experience Focus on SMT Tech. SMT Production Line Professional Manufacturer.
11 Years
| Ask Lasest Price | |
| Brand Name : | Charmhigh |
| Certification : | CE |
| Model Number : | CHMT48VA |
| Price : | $4500 |
| Delivery Time : | 1-3 days |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 200 Per month |
CHMT48VA Vibration feeder SMT Pick and Place Machine Prototying
Batch production
0201, 0402, LED, SOP, QFN 110v 220v English Language CE declaration
CHMT48VA working video, customer from Belgium :
www.youtube.com/watch?v=HiQF7R4X3UE
Pick and Place machine CHMT48VA placing LED:
www.youtube.com/watch?v=-tLj0SrvEMw
Direct buy online from Aliexpress store:
www.aliexpress.com/item/32752169031.html?spm=2114.12010612.8148356.1.7a0b32dc76DKB0
PayPal also accepted, our PayPal account is: sales@charmhigh-tech.com
Paypal link: paypal.me/Charmhigh
Specifications of CHMT48VA:
Technical Parameter for | Dimension | L 960mm*W 705mm*H 335mm |
PCB Area | 10*10~355*355mm | |
XY Axis travel | 400*460mm | |
Z axis move range | 15mm | |
Pick and Place head | 2pcs | |
Mounting Speed | With vision 3000~4000cph; without vision | |
Working Precision | ±0.025mm | |
Stack | 8mm=22 stack; 12mm=4 stack; 16mm=2 stack; | |
Vacuum pump | 2pcs in-build (mute) | |
Vision system | Up view and down view dual cameras | |
Computer system inside | Linux system inside, very stable, no need external PC | |
Software to genterate CSV file | By Protel 99SE ; Altium Designer | |
Support files | .csv file | |
Touch screen | 7’’ (15.6cm*9.3cm) industry touch screen | |
Support packages | 0402,0603,0805,1206,1210,3528,5050, SO-16,SOT-23,SOT-89,TO-252,SOP,QFN, LQFP....different kinds of IC (max size 22*22mm) | |
Voltage | AC 110V/ 220V, 50/60HZ (supply the plug for your country) | |
Gross weight | 73kg (with wooden box packing) | |
Standard Accessories for CHMT48VA:
1) Pick and Place MachineCHMT48VA: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size) Can send
nozzles according to your components.
3) 8G USB flash 1
4) Power Cord: 1
5) Pull pins: 2
6) Coil for pull pin:1
7) Camera positioning adjust black board: 1
8) Hex wrench: 6
9) Tweezers: 1
10) Brush: 1
11) English user manual: 1
Detail pictures:

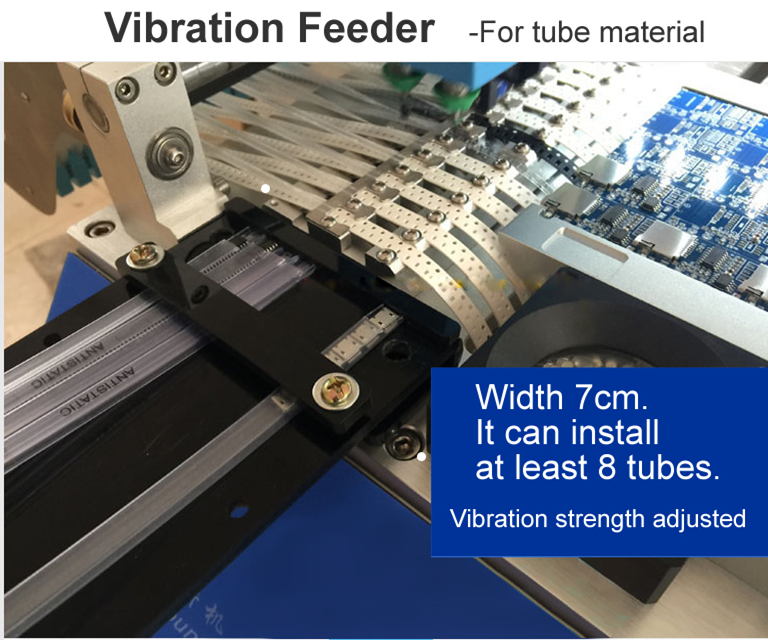

CHMT48VA + vibration feeder:

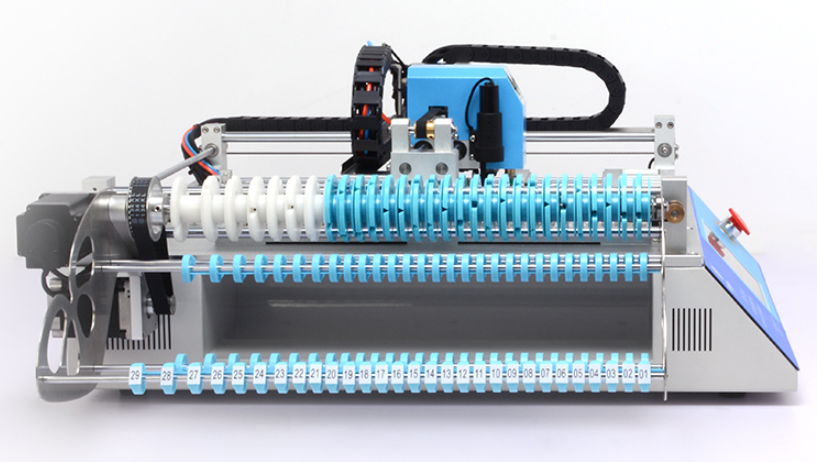

1-29 tape feeders(width 8/12/16/24mm)

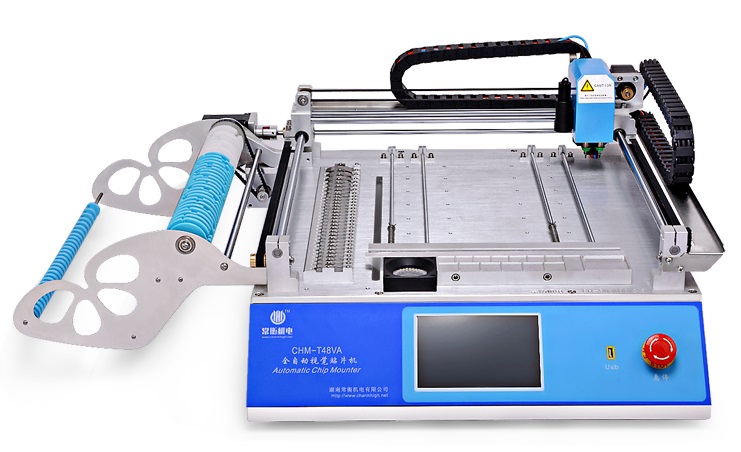

All-in-one machine, no need buy other external accessories or
external PC. It is ready to use:
User-defined IC tray, very convenient:
A closed-loop servo high-pressure stepper motor system, ensure
never loose steps:
Top and Bottom camera, make sure each component place very
accurate:
Camera side(down-looking):
Batch boards production:
USB mouse operation, very convenient:
Very safe packing: (All are real Pictures)
Kindly note:
The pick and place machine is complete set with all accessories
included in the package, QC passed.
It is all-in-one machine, ready to use!
You can use it when you receive it. Good after-sale tech support,
please purchase it with confidence.
Enjoy with your pick and place machine!
Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct
supply.
We provide online Q/A and troubleshooting support and technical
advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us in YouTube:
www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA/videos
If you want to see more information and videos, please contact us
by E-mail.
We will response you at the first time.
|
|
