Benchtop SMT Pick and Place Machine CHMT530P4 + High precision Solder Paste Printer 3040+ T962C Reflow Oven
SMT Production Line 110v / 220v English Version


Small SMT Production line / Best combination:

1. High precicsion stencil printer 3040:

2. CHMT530P4 (4 heads + 30 feeders)

3.Reflow Oven T962C:

Model: T962C
Effective Soldering max area: 400 x 600mm
Rated power: 2500W
Temperature Range: 0°C-280°C
Process cycle: 1~8 min
Voltage: 110V~240V
Frequency: 50Hz~60Hz
Product size: 684x504x225mm
Net weight: 25kg
Packing weight: 27kg

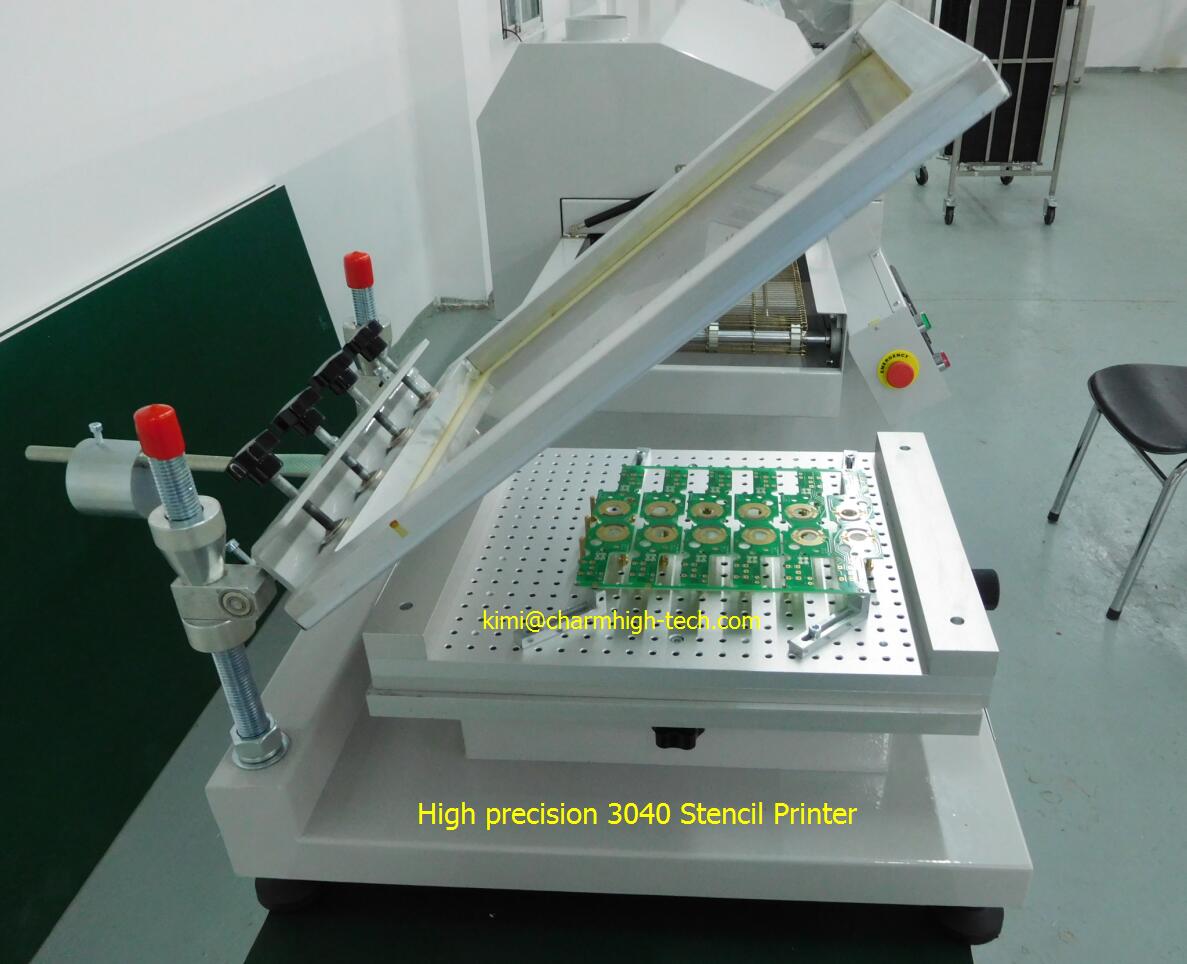

1. Stencil printer high precision 100% good feedback:



2. 4 heads 30 feeders advanced Pick and place machine CHMT530P4 with AUTO feeders with Vision System

Working video of CHMT530P4:

4 heads pick and place machine - Charmhigh CHMT530P4:
www.youtube.com/watch?v=2W3rWfMzPoU

4 Heads CHM-T530P4 Pick and Place Machine - Real working video from Customer:
www.youtube.com/watch?v=l7NOXwaQLSU

Quick start CHMT530P4 Placing 0603:
www.youtube.com/watch?v=x5dDWaLUDK0

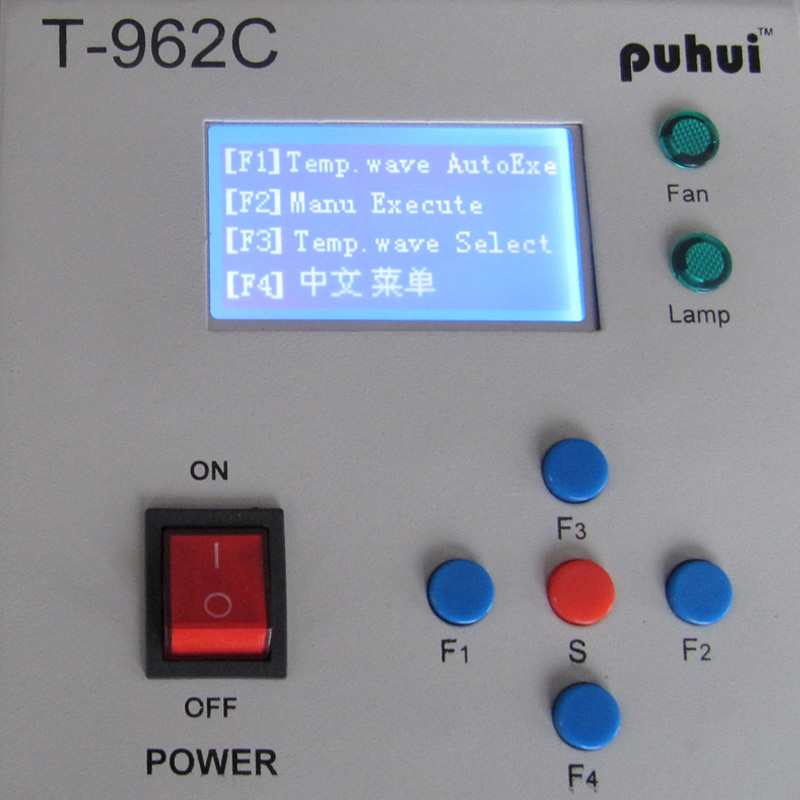

3. Desktop Reflow oven T962C:






Small SMT production line:

Solder printer ------ Pick and Place machine ----- Reflow oven





Q1: What is the lead time of your products? (How long do you need to prepare my goods?)

A: 2-3 days for 1-3 unit machine. 5-15 days for mass production orders (based on different quantities).

Q2: How will you deliver my goods to me?

A: We usually ship by international expresses such as DHL,UPS, FedEx, TNT to enable our customers get their
goods rapidly. For bigger quantity, ship by air or by sea.

Q3: How long do I need to wait before my goods arrive?

A: 3-7 days for international express. 5-8 days for air transportation. 20-40 days for sea transportation.

Q4: What is your product quality?

A: Our raw materials are purchased from qualified suppliers, the best qaulity in China. And our engineers all have over 20 years expereinces in Machinery, ensure good quality and functions. Now CharmHigh's Quality and feedback is better than other brands in China.
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply. (Artificial damage except)
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale
service.
If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.
Each machine 100% test well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89 .
E-mail: kimi@charmhigh-tech.com

(CHARMHIGH) YOUTUBE CHANNEL:
www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA


Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.

Transportation service:

For package below 200 kg , you can use DHL, Fedex or other express company, For large quantities, you could use sea delivery.

Our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.
