Manual SMT Production Line Solder Paste Stencil Printer , PCB Assembly Line Batch production

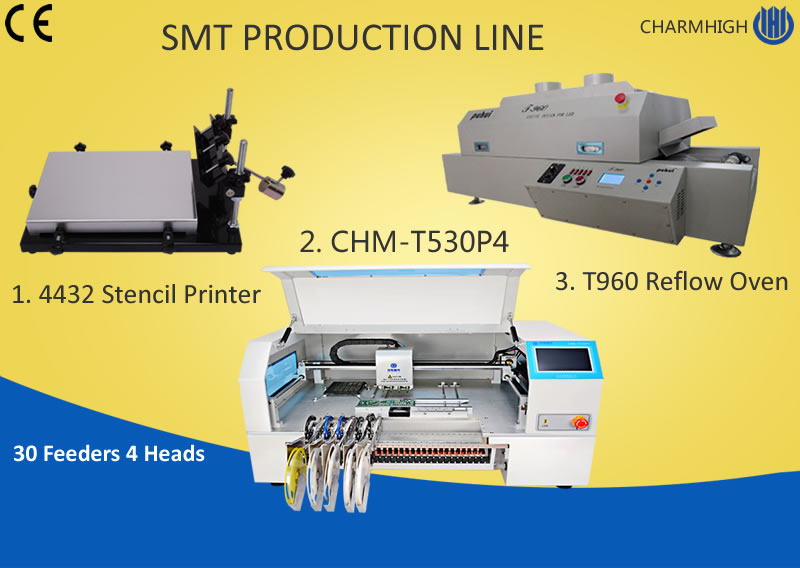

Best Combination SMT Production Line :
Solder paste Printer 4432 + 4 heads 30 feeders CHMT530P4 Pnp
Machine + T960 LED Reflow Oven
Please find working video on our Youtube channel:
(CHARMHIGH) YOUTUBE CHANNEL:
www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA
Small SMT Production line:
1. Solder paste printer:
| Technical Parameters | |
| Type: | Manual |
| G.W: | 13kg |
| Maximum print Area: | 320*440mm |
| Packing size: | L 71cm*W 52cm*H 14cm |
2.CHMT530P4
| Parameters | |
| Model | CHMT530P4 |
| XYZ Axis travel | 650mm(X)×760mm(Y)×15mm(Z) |
| PCB max size | 450mm(L)×330mm(W) |
| Support components | 0201-0402-5050, SOP, QFN,BGA etc. |
| Mounting speed |
|
| Precision | ±0.015mm |
| Placement head | 4 heads |
| Feeding system | l Support max 30pcs 8mm Pneumatic feeder (other options: 12,16,24mm,vibration feeder)
|
| Vision detection | Double camera (up & down) |
| Motor control |
|
| Components leakage detection | Vacuum and visual detection |
| Main board | High-reliability industry motherboard |
| Touch Screen | 7 inches industry screen |
| Operation system | Embedded Linux system |
| External air source | 0.5MPa |
| Power supply | AC220V 50Hz / AC110V 60Hz |
| Demension | 1050mm(L)×780mm(W)×500mm(H) |
| Compantible software | Altium designer, Protell99SE, PADS, Kicad, Eagle, Cadint, Cadence Orcad, Cadence Allegro, PROTEUS…etc |
| Net weight | 125Kg |
3.Reflow Oven T960:
Model | T-960 |
The heating zone quantity | upper3/down2 |
The length of the heating zone | 960mm |
The heating type | intelligent level sirocco and rapid infrared heating |
The cooling zone quantity | 1 |
Maximum width of PCB board | 300MM |
The operation direction | left to right |
Delivery options | Net transmission+chain transmission |
The speed of conveyer belt | 0-1600mm/min |
The power supply | Three phase 5 line 380V 50/60Hz |
Peak power | 4.5KW |
Heating up time | Around 15mins |
Temperature control range | Room temperature~300 |
Temperature control mode | PID closed-loop control |
Temperature control accuracy | ±3 |
PCB temperature distribution deviation | ±2 |
Overall dimensions | 1450×630×470 |
1. Stencil printer Middle size 320*440mm

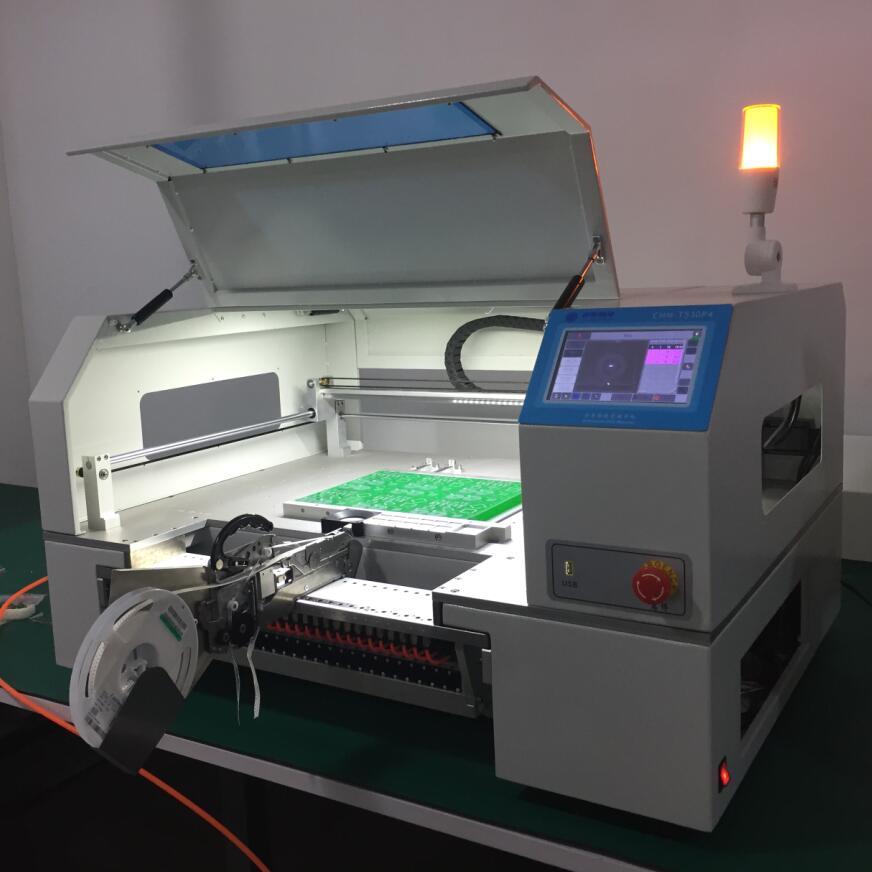

2. CHMT530P4 Pick and place machine with AUTO Yamaha pneumatic
feeders with Vision System:

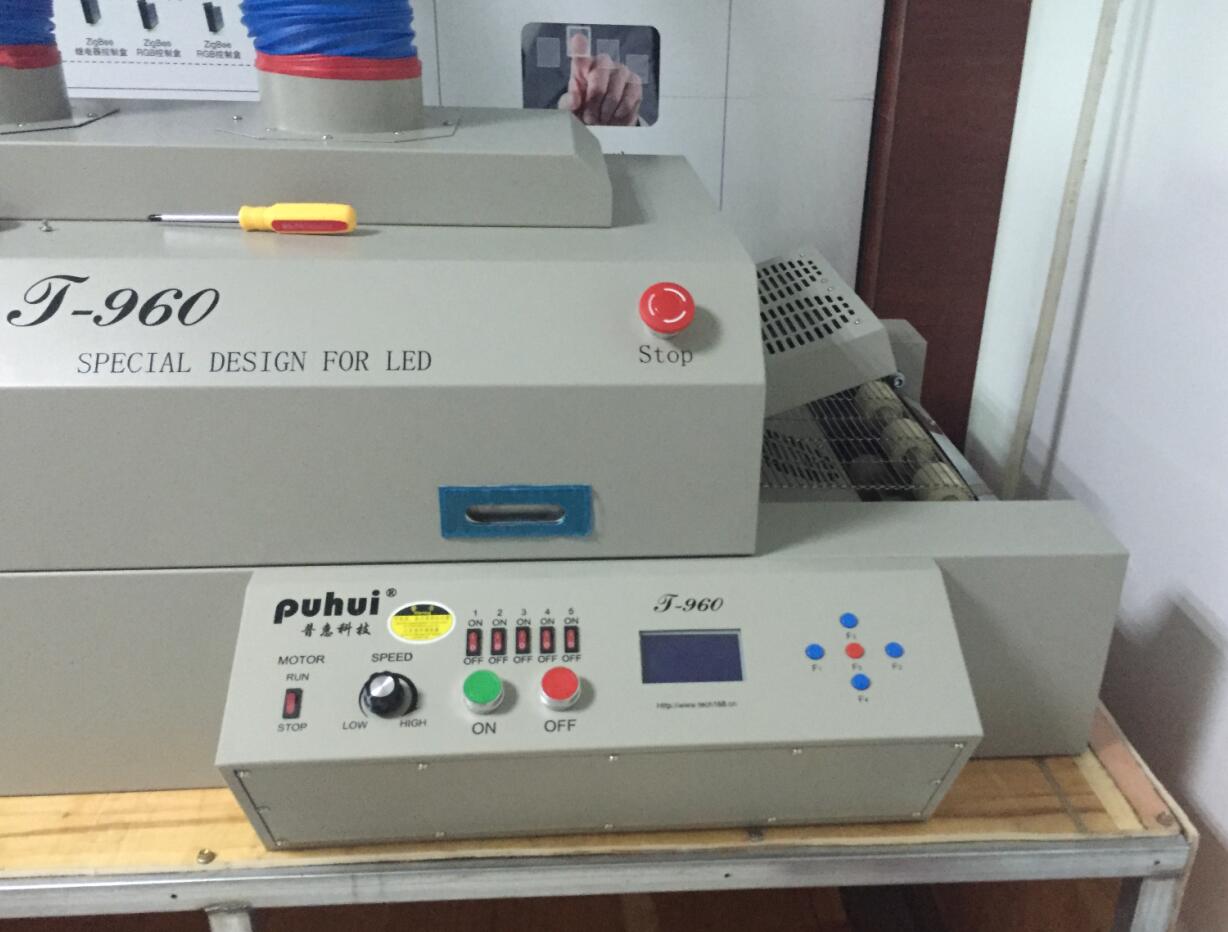

3. LED Reflow oven T960:
Small SMT production line:
Solder printer ------ Pick and Place machine ----- Reflow oven
