    PCB Pick And Place Machine chmt48va Solder Paste Stencil printer Machine T962a Reflow Oven

    Small SMT Production Line for Batch production!

    Stencil Printer 4432 / CHMT48VA SMT Pick and Place Machine / Reflow Oven T962A

    (CHARMHIGH) YOUTUBE CHANNEL: (working video)
    www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA



    Small SMT Production line:
    1.

    4432 Stencil Printer Technical Parameters
    Type:Manual
    G.W:13kg
    Maximum print Area:320*440mm
    Packing size:L 71cm*W 52cm*H 14cm

    2.

    Technical Parameter for CHMT48VA

    Dimension

    L 960mm*W 655mm*H 285mm

    PCB Area

    10*10~380*415mm

    XY Axis travel

    420*460mm

    Z axis move range

    15mm

    Pick and Place head

    2pcs

    Mounting Speed

    With vision 3000~4000cph; without vision
    6000cph (Note: cph means chip per hour)

    Working Precision

    ±0.025mm

    Stack

    8mm=22 stack; 12mm=4 stack; 16mm=2 stack;
    24mm=1 stack; Front IC=12 stack;
    User-defined IC tray=20 stack

    Vacuum pump

    2pcs in-build (mute)

    Vision system

    Top and bottom dual cameras

    Computer system inside

    Windows7 computer inside, no need external PC

    Software to genterate CSV file

    By Protel 99SE ; Altium Designer

    Support files

    .csv file

    Touch screen

    7’’ (15.6cm*9.3cm) true color TFT touch screen

    Support packages

    0402,0603,0805,1206,1210,3528,5050, SO-16,SOT-23,SOT-89,TO-252,SOP,QFN, LQFP....different kinds of IC (max size 22*22mm)

    Voltage

    AC 110V/ 220V, 50/60HZ (supply the plug for your country)

    Gross weight

    76kg (with wooden box packing)


    3. T962A Reflow oven parameter:

    T-962A Reflow Oven Technical Parameters
    Supply Voltage: AC220V /50HZ
    Putout Power: 1500W
    Maximum Soldering Area: 300*320mm
    Temperature Range: 0-280
    Cycle Time: 1~8 min
    G.W: 15kG
    Packing size: L 51cm*W 45cm*H 33cm


    Pictures as follows:

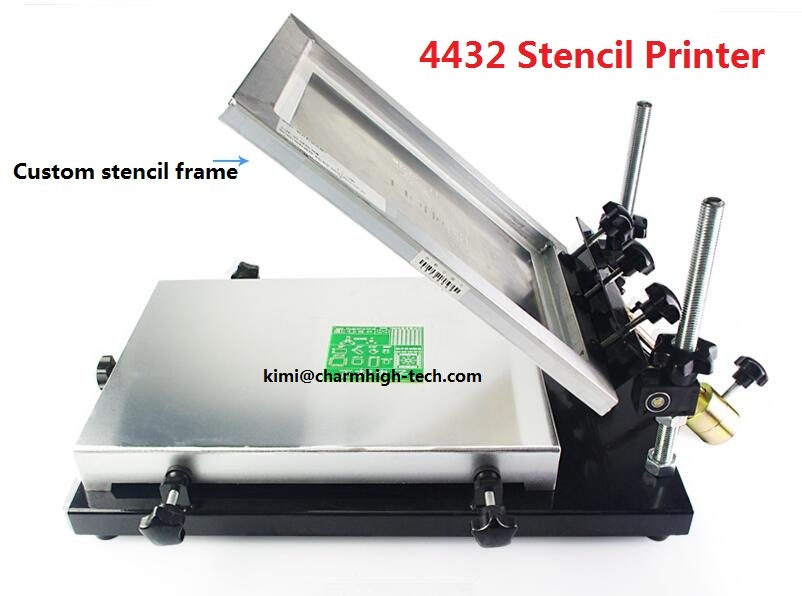

    1. Stencil printer Middle size 320*440mm



    2. CHMT48A Pick and place machine with Vision System



    3. Reflow oven T962A:





    Applications industry:

    Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.


    Warranty:


    The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
    support as well as a long term factory price supply.
    We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.


    Each machine 100% test well before send out.
    Tech support:
    Kimi Mob: 0086 135 106 75756
    Skype: kimiliu89 .
    E-mail: kimi@charmhigh-tech.com

    If you want to see more information and videos, please contact us by E - mail.

    We will response you at the first time.


    (CHARMHIGH) YOUTUBE CHANNEL:

    www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA


    Standard package service:
    The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.

    Transportation service:

    For package below 200 kg , you can use DHL, Fedex or other express company, For large quantities, you could use sea delivery.


    Why choose Charmhigh?

    1.Professional design and room saved.
    2.User friendly operation, no need professional SMT engineer, entry-level device
    3.One machine - Integrated operation, no need extra pump or PC or any supporting facility
    4.High accuracy and reliability, make up the defection of manual work
    5.Cost efficient, reduce expense to own a professional automatic SMT production line
    6.International express with door to door service,3-5 working days delivery
    7.Especial for laboratory research and development, samples, to avoid any patents and designs revealment.

    8.One machine equal to 5 soldering staff, easy manage and cost-saved. Good for small batch production.

    9.Charmhigh Is factory supply, all of our machines parts are researched and manufacturing by ourselves. After-service spare parts never stop.

    10. Charmhigh is a professional manufacturer of SMT Pick and Place machine since 2009. All the software are researched by ourselves.
