High Accuracy Small SMD / SMT Pick And Place Machine CHMT48V Chip Mounter Manufacturer​ 110v 220V

Recommend to all of you!

Shipping by DHL Express door to door

Package gross weight: 72kg
Packing: wooden case (safe packing)
110 cm *80cm*52cm

Description:

The new vison system CHMT48VA is independent product of Charmhigh, with advanced technology in

China, specail for research Lab, medium enterprise, Electronics enthusiasts or enterpreneur etc. It is small

with high precision, accurate positioning, easy operation with stable performance. Now leading the

technology in China.
CHMT48VA feedback very well. Compare with previous model CHMT28,CHMT36, it has a lot of
improvement, here are some highlights as follows:

Competitive Advantage:

1. Convenient system, computer windows7 inside the machine, independent operation, no need external computer, operation more easy and convenient.
2. 7’’ TFT touch screen, it can connect a external USB mouse on the usb port to operate the machine like a computer.
3. Top and bottom two cameras correct the position of each components very accurate, especially for IC.
4. It has flexible PCB clamping fixture, user-defined from stack NO.80. convenient and quick.
5. The vision also can second correction machine origin point, make sure origin point correct.
6. With two nozzles placing heads, high precise Juki Nozzles with magnet, no need to disassemble with wrench. 2 nozzles arbitrary rotation angle -180 degree~ +180 degree. Placing height can adjustable, accuracy of 0.1 mm.
7. PCB by two visual calibration, first and last componet, amend the offset of PCB.
8. Calibration can be rapidly and accurately for PCB, do not need to care about offset, no need to calculate the input.
9. Comes vacuum testing, with automatic feeding; if one component suck crooked, it will automatically throw it to the feed zone, then pick a new one to mount again.
10. If lack material it will automatic detection, then alarm; after supply the material then continue working, no need to re-start.
11. Support any number of PCB batch.
12. If no PCB file, or don’t use protell software, you can creat a new file to program. Support single step.

Description:

CHMT48VA Vision System Specially Design with Vision Based Pick & Place to achieve more accuracy and ensure for correct Placements on Large Size of PCB/SMT/LED from Small to Max Size of Components and PCB Size.

1. Top Vision Camera to Identify PCB and Types of Components, Optimised Data with Programs File

2. Bottom Camera Check each components before placements, it can check correct types of components, correct angle, correct direction, flip components and wrong pick Up, Missedcomponents.

3. Vision system sending inspected data and feedback to Programming processor, Programming Processor give optimised command to machine get the correct and 100% ensured Placements.
4. Two Mounting Heads Provide high Throughput on High Mix Products .

Features:

1. Placements Accuracy ±0.025mm for SMT/LED Components
2. Correct teaching of PCB Origin, Components Locations identifications and Nozzles Centring
3. On the Head Vacuum Detection system to detect components
4. High Quality & Spring Loaded Pick Up Nozzles to get the pickup Flexibility of sensitive components
5. Integrated Components Reel Rack Slots and Holder
6. Max PCB Size: 350mm x 350mm
7. Lowest PCB Size: 10mm x 10mm
8. 20mm Components Height give flexibility for placements all types of components
9. Components Handling Capacity from 0402 to 0603, 0805, 1206, 1210, 1812, 2010, 2512, 3216, DO-214, SOT23, SOT-89
10. Chip Tantalum Capacitors C-form(6032), D-form(7343) etc. package components11
12. High Placements Speed up to 7200 Components/Hour
1314. Placements Angle from 0-360Deg Cent
15. Removable 8GB Memory Card for Back of Programs and Interface with Laptop or Desktop Computer
16. Fully Touch Screen Operational Panel for easy Operation

Specifications:

Applications industry:

Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.


Standard Accessories for CHMT48VA:

1) Pick and Place MachineCHMT48VA: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size) Can send nozzles according to your components.
3) 8G USB flash 1
4) Power Cord: 1
5) Pull pins: 2
6) Coil for pull pin:1
7) Camera positioning adjust black board: 1
8) Hex wrench: 6
9) Tweezers: 1
10) Brush: 1
11) English user manual: 1

Machine is completed, ready for work, each machine will be tested well, QC passed.
Please purchase it with confidence.
Quality guarantee, quality is better than other brand machines.




Top and Bottom camera, make sure each component place very accurate:



User-defined IC Tray:




100% Real Picture:

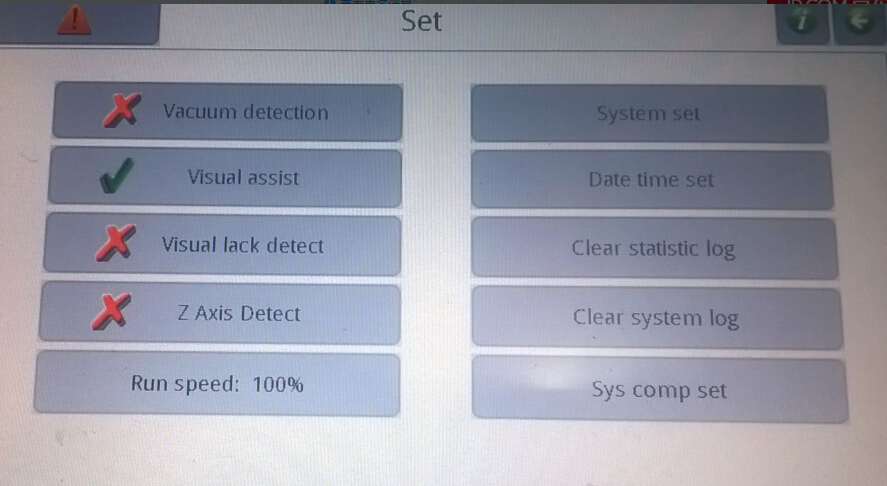

Touch screen:
Inside a linux computer with very stable system, no need to connect computer
very convenient!

Total pakage:



Juki Nozzles



Software:

1. Altium designer
2. Protel99SE


samples:

Packing very safe:



Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% test well then sent out.

Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89 .
E-mail: kimi@charmhigh-tech.com

Our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.
