Automatic Smt Pick and Place Machine Charmhigh CHMT28 / CHMT36 /
CHMT48VA / CHMT530P English Version 110v 220V CE certificate
Specifications for Charmhigh pick and place machines, total four
models:
Model | CHMT28 |
PCB area | 10mm*10mm～270mm*290mm |
X Y Axis travel | 280*300mm |
Z Axis moving range | 15mm |
Nozzle quantity | 2 PCS |
Fedders | Total 25pcs stack (8MM=14 pcs, 12MM=2 pcs, 16MM=1 pcs, prey IC tray = 8 pcs) |
Speed | Max 6000cph |
Precision | ±0.025mm |
CSize | 0402-5050, SOP,QFN ( width: 8MM, 12MM,16MM) |
Dimension | L 855mm*W 535mm*H 335mm |
vacuum air pump | -92KPA( in-built ) mute type pump |
air pump | 2pcs ( in-built ) mute type pump |
voltage | 220V or (110V), 50Hz |
Power | 200W |
Weight | 45kg |
volume | 0.31m³ |
Specifications for CHMT36 | |
Version | Charmhigh (CMHT36) |
Applicable PCB | 20mm*20mm-380mm*415mm |
XY axis moving range | 420×460mm |
Z axis moving range | 15mm |
Placement head quantity | 2 |
Mounting capability | 6000 components per hour (MAX: 7200cph) |
Mounting accuracy | ±0.025mm |
Applicable Components | 0402-5050,SOP, QFN |
Components supply configuration | Tape reel, bulk package (IC) |
Tape width | 8mm, 12mm, 16mm |
Feeders | 37(8mm=22, 12mm=4, 16mm=2, 24mm=1, lead IC=8) |
Dimension | L 960mm x W 705mm x H 335mm |
Vacuum pump | -92KPA (Mute type pump) |
Vacuum pump quantity | 2 (included) |
Power supply | 220V, 50Hz (convertible to 110V) |
Average working power | 200W |
Gross Weight | 68KG (without packing: 60KG) |
Packing size | 0.41m³ |
Specifications of CHMT48VA:
Technical Parameter for CHMT48V | Dimension | L 960mm*W 705mm*H 335mm |
PCB Area | 10*10~355*355mm | |
XY Axis travel | 400*460mm | |
Z axis move range | 15mm | |
Pick and Place head | 2pcs | |
Mounting Speed | With vision 3000~4000cph; without vision | |
Working Precision | ±0.025mm | |
Stack | 8mm=22 stack; 12mm=4 stack; 16mm=2 stack; | |
Vacuum pump | 2pcs in-build (mute) | |
Vision system | Up view and down view dual cameras | |
Computer system inside | Linux system inside, very stable, no need external PC | |
Software to genterate CSV file | By Protel 99SE ; Altium Designer | |
Support files | .csv file | |
Touch screen | 7’’ (15.6cm*9.3cm) industry touch screen | |
Support packages | 0402,0603,0805,1206,1210,3528,5050, SO-16,SOT-23,SOT-89,TO-252,SOP,QFN, LQFP....different kinds of IC (max size 22*22mm) | |
Voltage | AC 110V/ 220V, 50/60HZ (supply the plug for your country) | |
Gross weight | 73kg (with wooden box packing) - | |
CHM-T530P Technical Parameters:
| Parameters | |
| Model | CHMT530P |
| XYZ Axis travel | 510mm(X)×450mm(Y)×15mm(Z) |
| PCB max size | 350mm(L)×250mm(W) |
| Support components | 0402-5050, SOP, QFN etc. |
| Mounting speed |
|
| Precision | ±0.025mm |
| Placement head | 2pcs |
| Feeding system |
|
| Vision detection | Double camera(up & down) |
| Motor control |
|
| Components leakage detection | Vacuum and visual detection |
| Main board | High-reliability industry motherboard |
| Touch Screen | 7 inches industry screen |
| Operation system | Embedded Linux system |
| External air source | 0.5MPa |
| Power supply | AC220V 50Hz / AC110V 60Hz |
| Demension | 890mm(L)×680mm(W)×490mm(H) |
| Power | 250W |
| Net weight | 95Kg |

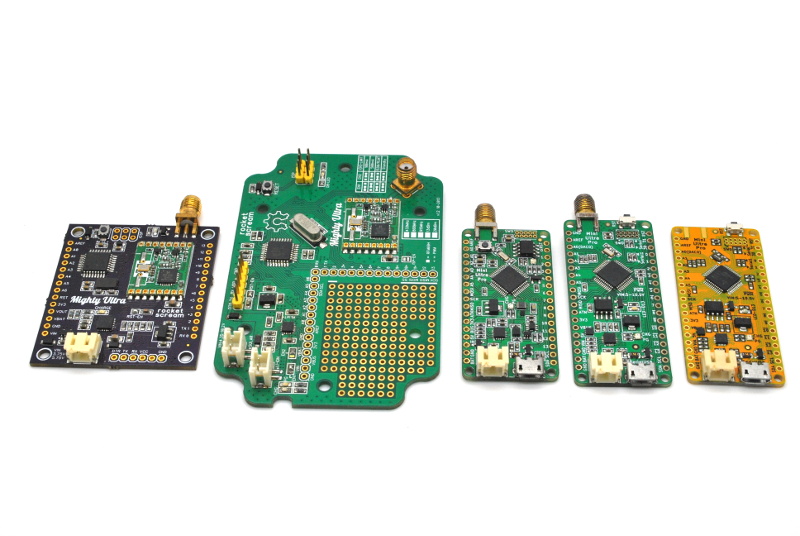

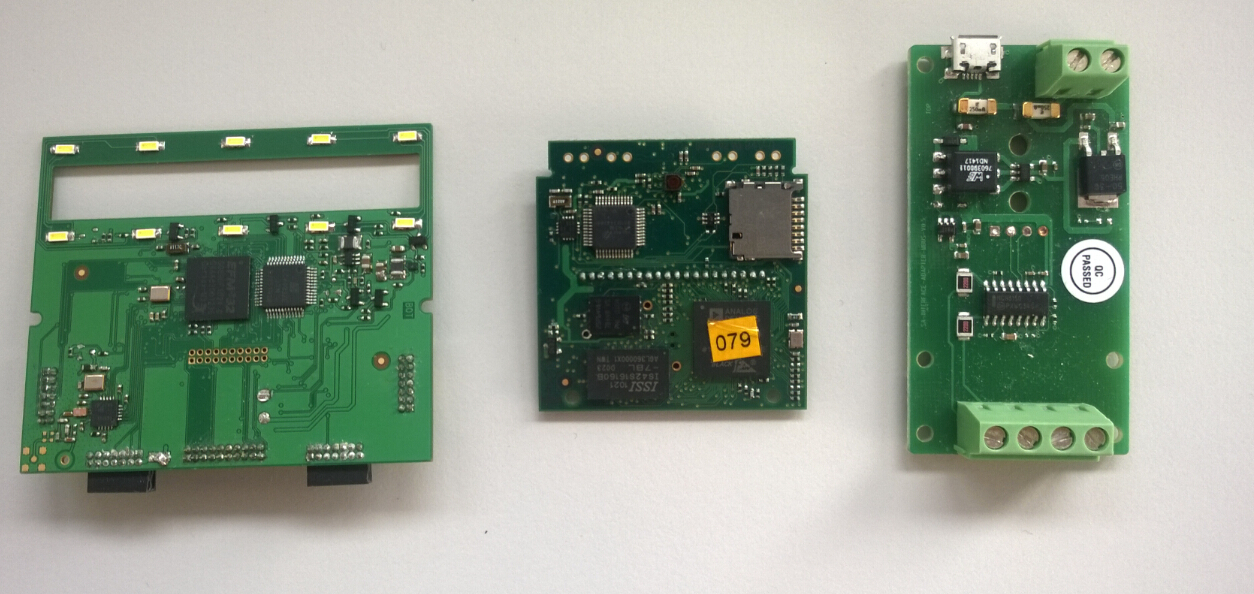

Applications industry:
Household appliances industry, Auto electronics industry, Power
industry, LED industry, security,instruments and meters industry,
communications industry, intelligent control industry, Internet of
Things(IOT) industry and military industry, etc.

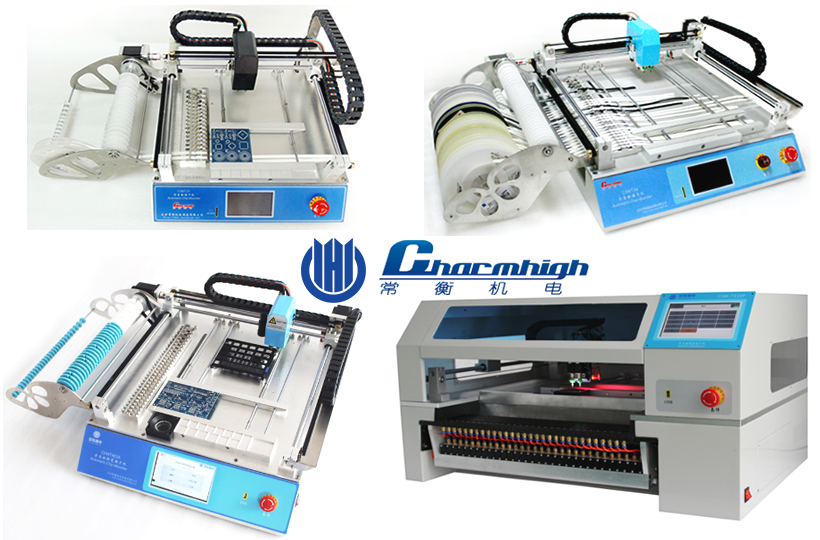

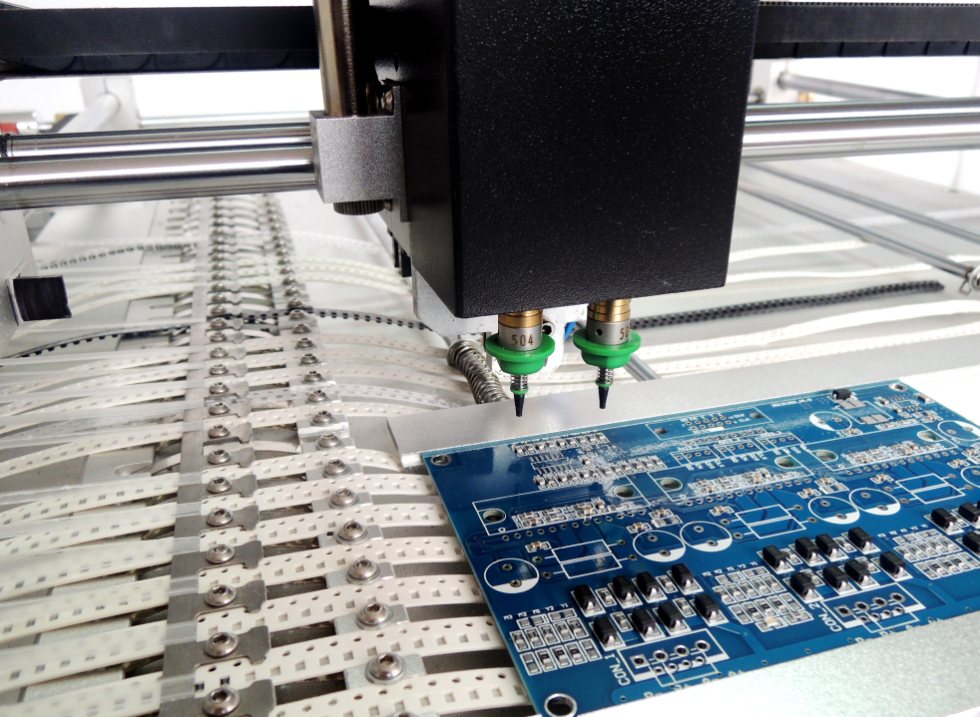

Total 4 models:

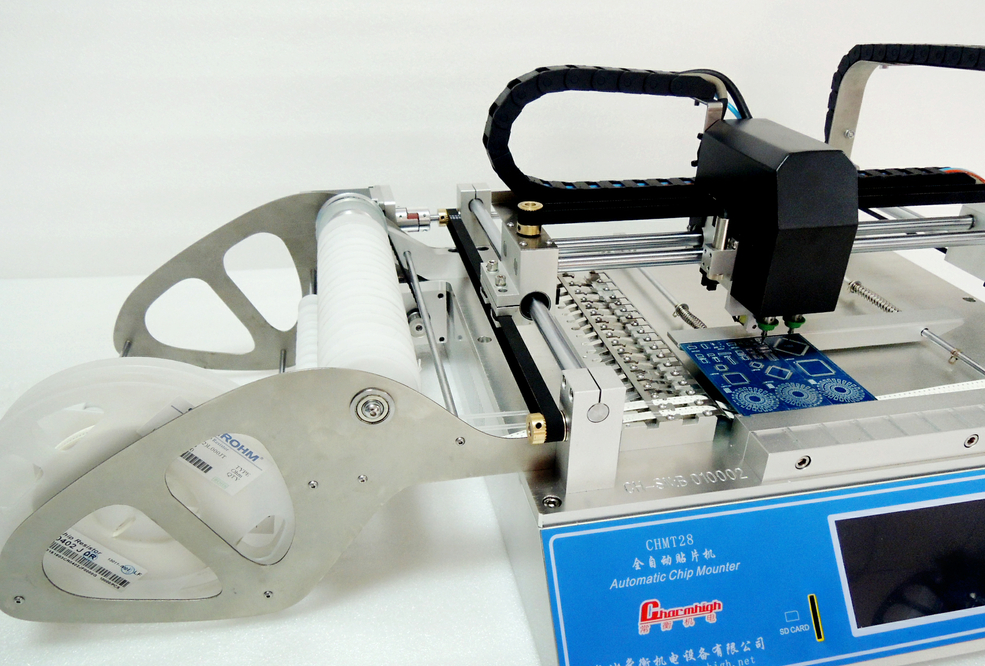

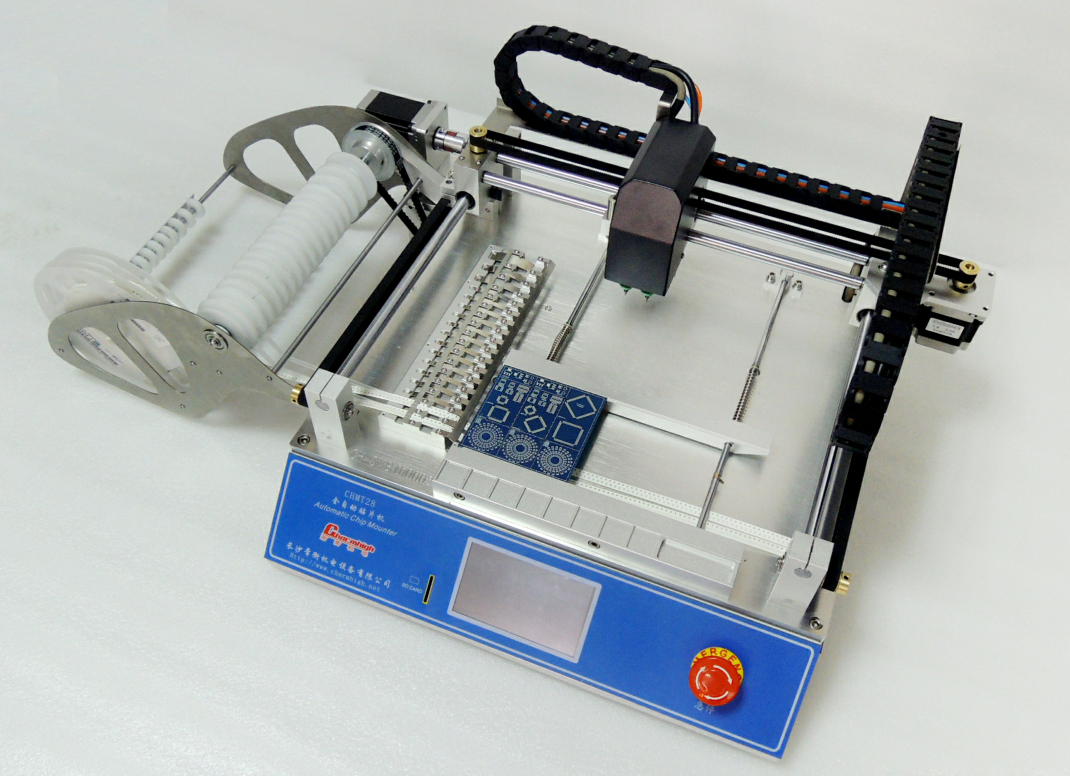

CHMT28 Pictures:
