    Auto Feeder Pick and Place CHMT530P4 pnp Machine 4 Heads 30 feeders SMT Surface Mount System

    Ask Lasest Price
    Brand Name : Charmhigh
    Model Number : CHMT530P4
    Certification : CE
    Price : $5200
    Payment Terms : T/T , Western Union, MoneyGram
    Supply Ability : 200pcs per month
    Delivery Time : 1-3 working days after received payment
    • Product Details
    • Company Profile

    Auto Feeder Pick and Place CHMT530P4 pnp Machine 4 Heads 30 feeders SMT Surface Mount System

    CHMT530P4 Charmhigh 4 Heads Desktop SMT pick and place machine 30 feeders, work with Yamaha pneumatic feeder 8mm 12mm 16mm 24mm

    Advanced Pick and Place Machine 110v 220V English Version CE Passed



    Please find Video in Youtube link of video:

    CHMT530P4 - 4 Heads Placement:
    www.youtube.com/watch?v=2W3rWfMzPoU

    Description:

    This CHMT530P4 is an updated model from CHMT530P which has 4 heads, mounting speed is faster, for small smt production is your good helper!
    The operation system is industry level embedded Linux system, the main board of machine was researched by ourself, which is more relaible than windows system, and life time is much longer. CHMT530P4 using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP,QFN,LQFP,Diode,Transistor,BGA...etc, which can meet more customers' demand.


    Charmhigh CHM-T530P4 Technical Parameters


    Parameters
    ModelCHMT530P4
    XYZ Axis travel650mm(X)×760mm(Y)×15mm(Z)
    PCB max size450mm(L)×330mm(W)
    Support components0201-0402-5050, SOP, QFN,BGA etc.
    Mounting speed
    • Without vision:8000cph
    • With Vision:5500cph
    Precision±0.015mm
    Placement head4 heads
    Feeding system

    l Support max 30pcs 8mm Pneumatic feeder (other options: 12,16,24mm,vibration feeder)

    • 11pcs general IC stack
    • Support IC tray
    Vision detectionDouble camera (up & down)
    Motor control
    • XY Axis stepper motor with encoder closed-loop control
    • Flexible S deceleration
    • Z Axis reset detection
    Components leakage detectionVacuum and visual detection
    Main boardHigh-reliability industry motherboard
    Touch Screen7 inches industry screen
    Operation systemEmbedded Linux system
    External air source0.5MPa
    Power supplyAC220V 50Hz / AC110V 60Hz
    Demension1050mm(L)×780mm(W)×500mm(H)
    Power250W
    Net weight110Kg


    Applications industry:

    Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.


    100% Real pictures:

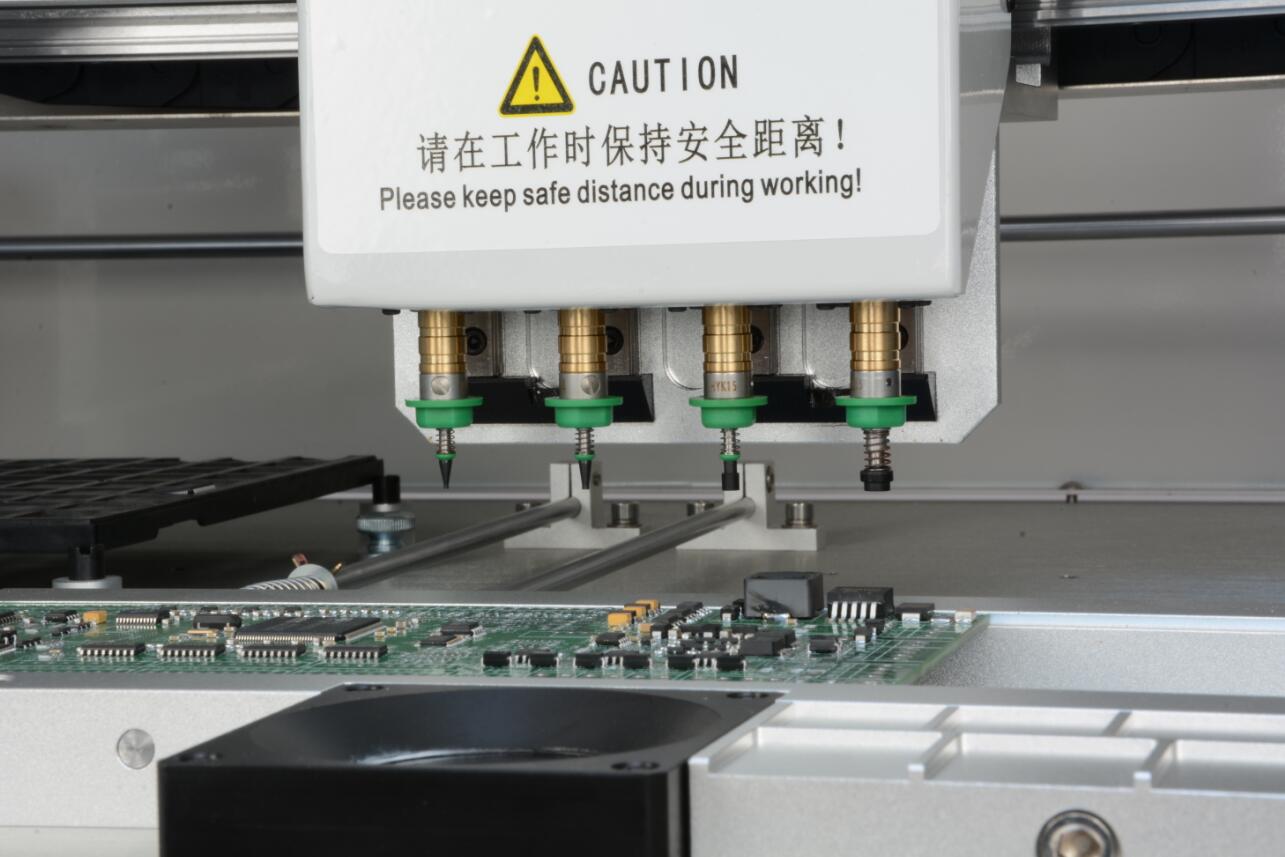

    4 heads with dual camera vision system:



    Support IC tray:



    Tocuh screen control, in-build industry PC, no need external computer, very convenient:



    Work with standard Yamaha pneumatic feeders:


    Option:
    8mm / 12mm/ 16mm / 24mm + vibration feeder (stick feeder)




    Customer 100% high feedback:



    sampels:



    Best seller ----- CHMT530P4 model.

    Welcome inquiries.


    Warranty:


    The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
    support as well as a long term factory price supply. (Artificial damage except)
    We provide online Q/A and troubleshooting support and technical advice service. Provide one to one

    after-sale service.

    If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.


    Each machine 100% test well before ship out.
    Tech support:
    Kimi Mob: 0086 135 106 75756
    Skype: kimiliu89
    E-mail: kimi@charmhigh-tech.com




    Q1: What is the lead time of your products? (How long do you need to prepare my goods?)


    A: 2-3 days for 1-3 unit machine. 5-15 days for mass production orders (based on different quantities).


    Q2: How will you deliver my goods to me?


    A: We usually ship by international expresses such as DHL,UPS, FedEx, TNT to enable our customers get

    their goods rapidly. For bigger quantity, ship by air or by sea.


    Q3: How long do I need to wait before my goods arrive?


    A: 3-7 days for international express. 5-8 days for air transportation. 20-40 days for sea transportation.


    Q4: What is your product quality?


    A: Our raw materials are purchased from qualified suppliers, the best qaulity in China. And our engineers all have over 20 years expereinces in Machinery, ensure good quality and functions. Now CharmHigh's Quality and feedback is better than other brands in China.


    Standard package service:


    The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.


    Transportation service:

    For package below 200 kg , you can use DHL, Fedex or other express company, For large quantities, you could use sea delivery.
