    Automatic Smt Pick and Place Machine Charmhigh CHMT28 / CHMT36 / CHMT48VA / CHMT530P

    Ask Lasest Price
    Brand Name : Charmhigh
    Model Number : CHMT28 / CHMT36 / CHMT48VA / CHMT530P
    Certification : CE
    Price : Negotiate
    Payment Terms : T/T , Western Union, MoneyGram
    Supply Ability : 200pcs per month
    Delivery Time : 1-3 working days after received your payment
    • Product Details
    • Company Profile

    Automatic Smt Pick and Place Machine Charmhigh CHMT28 / CHMT36 / CHMT48VA / CHMT530P

    Desktop Automatic Smt Pick and Place Machine Charmhigh CHMT28 / CHMT36 / CHMT48VA / CHMT530P​ English Version 110v 220V

    Charmhigh has our own technology engineers to do the research, making and selling CNC Engraving machines and SMT pick and place machine.

    Our factory will use advanced technology to provide better after-sale service and to find a proper position in the international market. We are very keen to stay up to study with the latest SMT technology, we have confidence to creat more quality products.


    we have total 4 models now:


    CHMT28 / CHMT36 / CHMT48VA / CHMT530P


    The simple differences are:

    1. 28 and 36 and 48VA using pull needle pull tape, and 530P using Pneumatic feeder auto feeding.

    2. 28 and 36 model are non-vision machine;

    3. 48VA and 530P are vision machine, 530P is with Yamaha Pneumatic feeder machine instead.


    Specifications for Charmhigh pick and place machines, total four models:


    Model

    CHMT28

    PCB area

    10mm*10mm270mm*290mm

    X Y Axis travel

    280*300mm

    Z Axis moving range

    15mm

    Nozzle quantity

    2 PCS

    Fedders

    Total 25pcs stack (8MM=14 pcs, 12MM=2 pcs, 16MM=1 pcs, prey IC tray = 8 pcs)

    Speed

    Max 6000cph

    Precision

    ±0.025mm

    CSize

    0402-5050, SOP,QFN ( width: 8MM, 12MM,16MM)

    Dimension

    L 855mm*W 535mm*H 335mm

    vacuum air pump

    -92KPA( in-built ) mute type pump

    air pump

    2pcs ( in-built ) mute type pump

    voltage

    220V or (110V), 50Hz

    Power

    200W

    Weight

    45kg

    volume

    0.31m³


    Specifications for CHMT36

    Version

    Charmhigh (CMHT36)

    Applicable PCB

    20mm*20mm-380mm*415mm

    XY axis moving range

    420×460mm

    Z axis moving range

    15mm

    Placement head quantity

    2

    Mounting capability

    6000 components per hour (MAX: 7200cph)

    Mounting accuracy

    ±0.025mm

    Applicable Components

    0402-5050,SOP, QFN

    Components supply configuration

    Tape reel, bulk package (IC)

    Tape width

    8mm, 12mm, 16mm

    Feeders

    37(8mm=22, 12mm=4, 16mm=2, 24mm=1, lead IC=8)

    Dimension

    L 960mm x W 705mm x H 335mm

    Vacuum pump

    -92KPA (Mute type pump)

    Vacuum pump quantity

    2 (included)

    Power supply

    220V, 50Hz (convertible to 110V)

    Average working power

    200W

    Gross Weight

    68KG (without packing: 60KG)

    Packing size

    0.41m³


    Specifications of CHMT48VA:


    Technical Parameter for CHMT48V

    Dimension

    L 960mm*W 705mm*H 335mm

    PCB Area

    10*10~355*355mm

    XY Axis travel

    400*460mm

    Z axis move range

    15mm

    Pick and Place head

    2pcs

    Mounting Speed

    With vision 3000~4000cph; without vision
    6000cph (Note: cph means chip per hour)

    Working Precision

    ±0.025mm

    Stack

    8mm=22 stack; 12mm=4 stack; 16mm=2 stack;
    24mm=1 stack; Front IC=12 stack;
    User-defined IC tray=20 stack

    Vacuum pump

    2pcs in-build (mute)

    Vision system

    Up view and down view dual cameras

    Computer system inside

    Linux system inside, very stable, no need external PC

    Software to genterate CSV file

    By Protel 99SE ; Altium Designer

    Support files

    .csv file

    Touch screen

    7’’ (15.6cm*9.3cm) industry touch screen

    Support packages

    0402,0603,0805,1206,1210,3528,5050, SO-16,SOT-23,SOT-89,TO-252,SOP,QFN, LQFP....different kinds of IC (max size 22*22mm)

    Voltage

    AC 110V/ 220V, 50/60HZ (supply the plug for your country)

    Gross weight

    73kg (with wooden box packing) -


    CHM-T530P Technical Parameters:


    Parameters


    Model

    CHMT530P

    XYZ Axis travel

    510mm(X)×450mm(Y)×15mm(Z)

    PCB max size

    350mm(L)×250mm(W)

    Support components

    0402-5050, SOP, QFN etc.

    Mounting speed

    • Without vision:6500cph
    • With Vision:4500cph

    Precision

    ±0.025mm

    Placement head

    2pcs

    Feeding system

    • Support max 30pcs 8mm Pneumatic feeder (4mm, 8mm, 12mm, 16mm, 24mm for option)
    • 11pcs general IC stack
    • Support IC tray

    Vision detection

    Double camera(up & down)

    Motor control

    • XY Axis stepper motor with encoder
    • Flexible S deceleration
    • Z Axis reset detection

    Components leakage detection

    Vacuum and visual detection

    Main board

    High-reliability industry motherboard

    Touch Screen

    7 inches industry screen

    Operation system

    Embedded Linux system

    External air source

    0.5MPa

    Power supply

    AC220V 50Hz / AC110V 60Hz

    Demension

    890mm(L)×680mm(W)×490mm(H)

    Power

    250W

    Net weight

    90Kg

    Applications industry:

    Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.



    CHMT28 Pictures:


    CHMT36 Pictures:


    CHMT48VA Pictures:

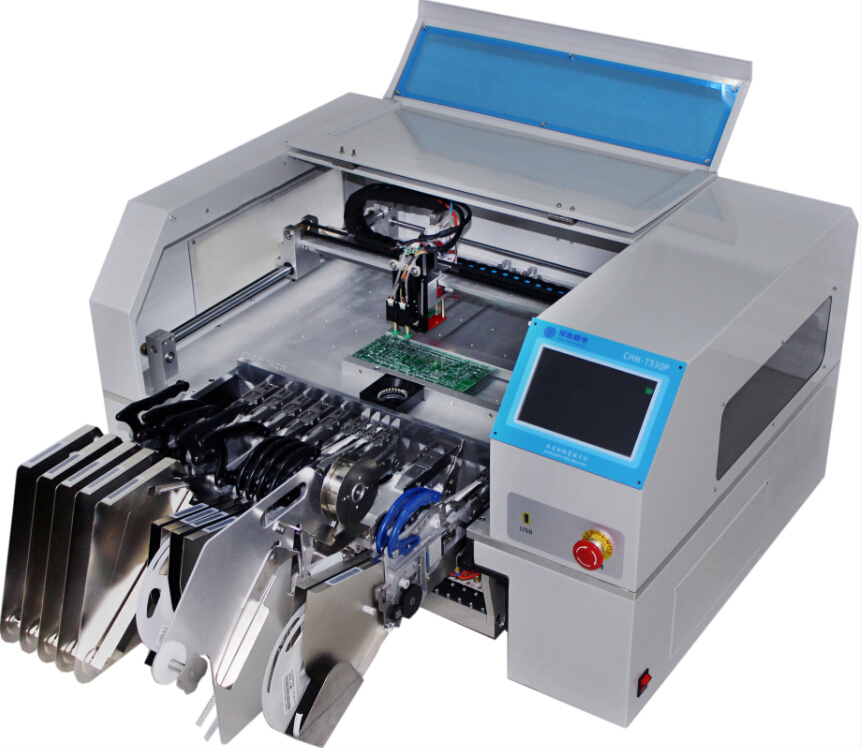

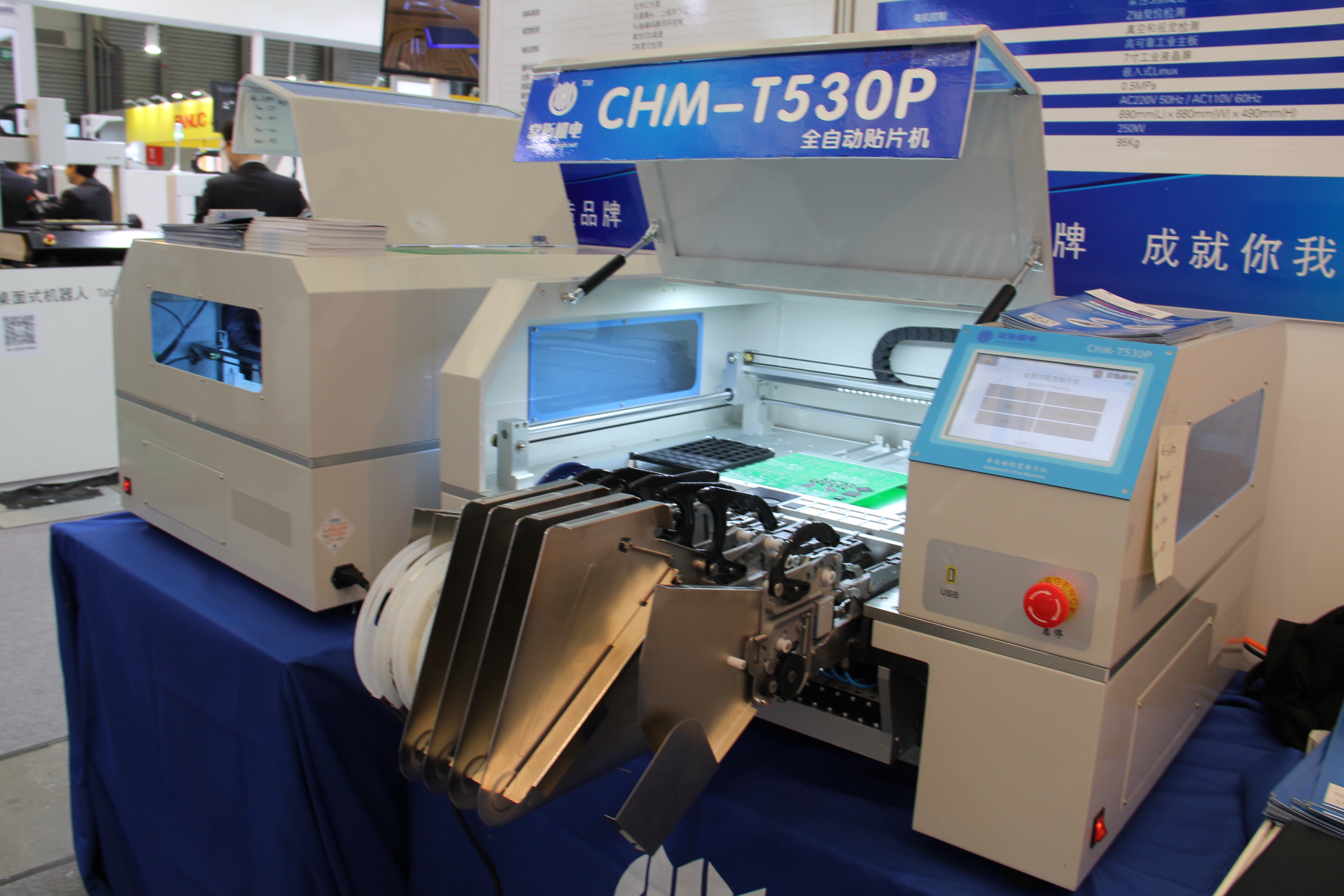

    CHMT58530P Feeder machine Pictures:

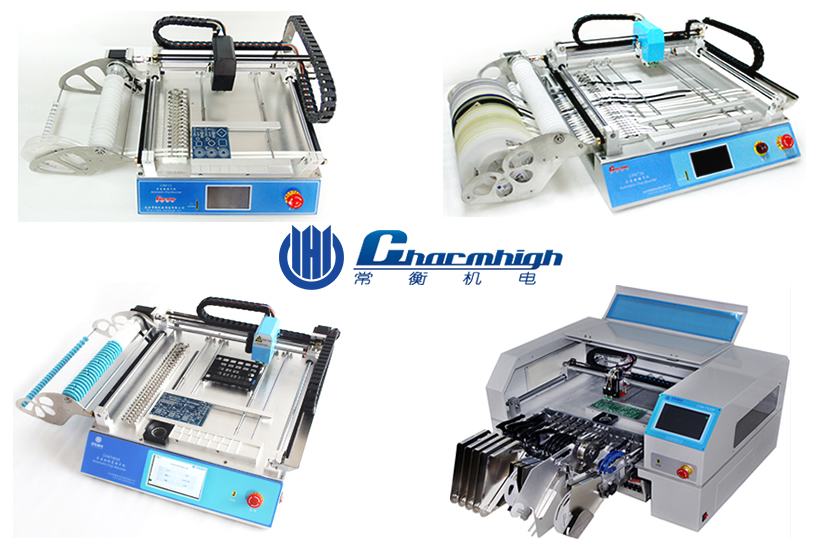

    Total 4 models pnp Machines by Charmhigh:


    Welcome inquiry!


    Sampels view:



    samples by customer:




    Warranty:


    The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
    support as well as a long term factory price supply.
    We provide online Q/A and troubleshooting support and technical advice service.
    Provide one to one after-sale service.


    Each machine 100% test well then sent out.
    Tech support:
    Kimi Mob: 0086 135 106 75756
    Skype: kimiliu89 .
    E-mail: kimi@charmhigh-tech.com

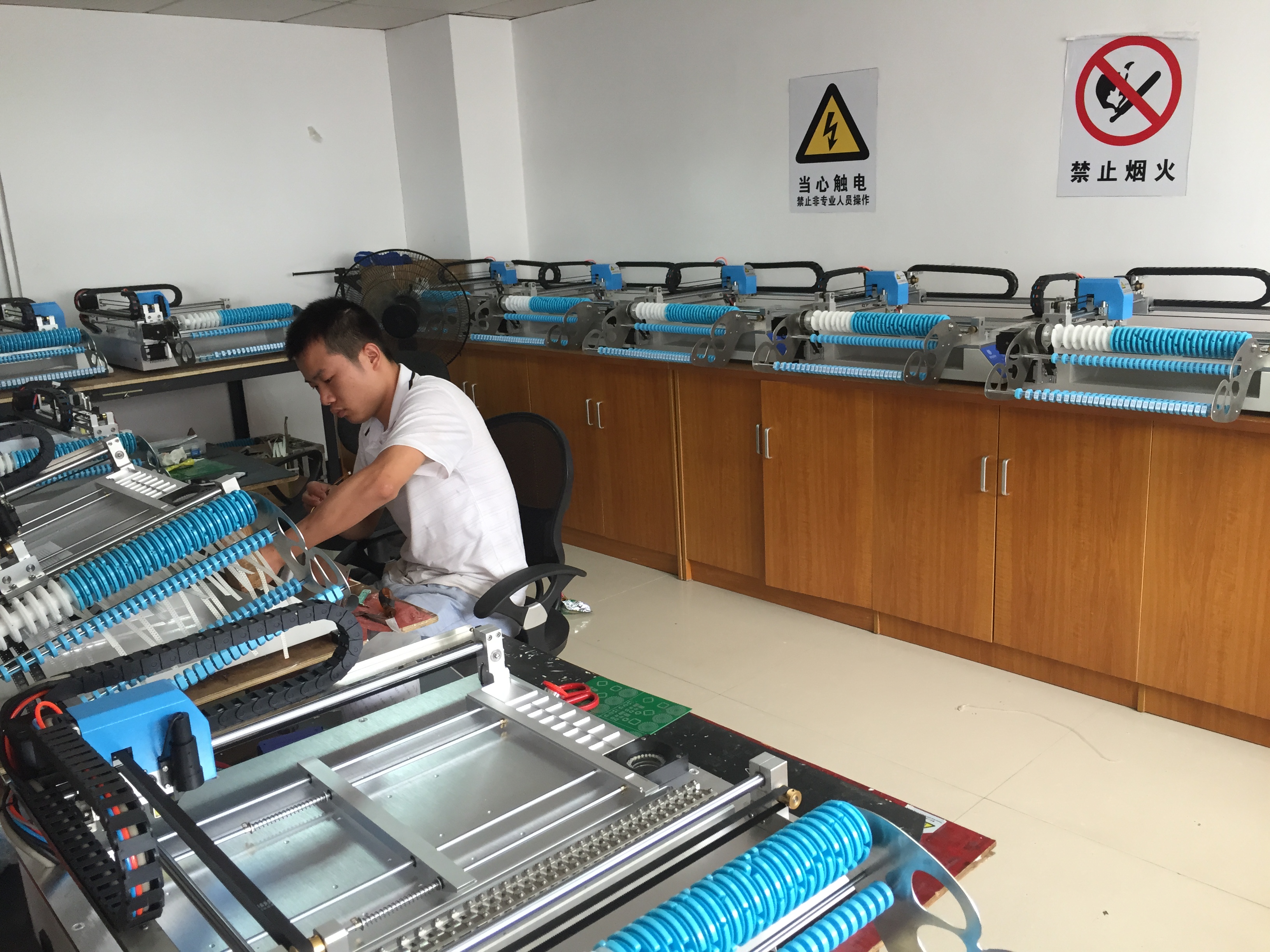

    Factory testing:
