    Chmt48vb Table Top Pick And Place Smt Machine With 58pcs Feeders


    58pcs Feeders Vision Camera CHMT48VB Charmhigh Tabletop Pick and Place Machine, Prototype Small Batch production

    Advanced Pick and Place Machine​ 110v 220V English Version CE Passed


    YOUTUBE CHANNEL:
    www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA


    Catalogue download from here: CHMT48VB.pdf
    ModelCHM-T48VB
    PCB area10mm*10mm - 355mm*355mm
    X Y axis Travel420*460mm
    Z axis moving range15mm
    Placement heads2pcs
    FeedersLeft 29pcs + right 29pcs
    8mm=44pcs, 12mm=8pcs, 16mm=4pcs, 24mm=2pcs,
    Front IC stack=14pcs, user-defined IC tray
    Vision systemDual cameras (up & down cameras)
    DriveClosed-loop control stepper servo drive system, make sure never lose step
    Z axis self-return detectionYes, prevent nozzles breaking
    Pull pin self-returnYes
    Leakage of material detection methodVacuum detection, vision detection
    Touch screen7”industry touch screen (USB mouse supprted)
    Main boardIndependent research industry main board
    SystemEmbedded Linux system
    Mounting speed5000cph (vision off); 3000cph (vision on)
    Mounting precision±0.025mm
    Components0402-5050,SOP,QFN (tape width: 8MM,12MM,16MM,24MM)
    Machine dimensionL 960mm* W 705mm* H 335mm
    Vacuum pump-92KPA (2pcs,build-in, mute type)
    External air sourceNo need (machine build-in mute vacuum pump 2pcs)
    External PCNo need , this is all-in-one machine
    Voltage220V (110V), 50Hz
    Support softwareAltium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS..etc
    Gross weight84kg / 118*80*52cm / 0.49m³

    Competitive Advantage:


    1. Convenient software, Embedded Linux System of the machine, industry system, more professional and stable, independent operation, no need external computer, operation more easy and convenient.
    2. Industry full touch screen operation, no need external screen, room saved, more convenient operation, USB mouse supported as well.
    3. Top and bottom two cameras CCD system correct the position of each components very accurate,especially for IC.
    4. It has flexible PCB clamping fixture, and it has user-defined IC tray, convenient and quick.
    5. The vision also can second correction machine origin point, make sure origin point correct.
    6. With two nozzles placing heads, high precise Juki Nozzles with magnet, no need to disassemble with wrench. 2 nozzles arbitrary rotation angle -180 degree~ +180 degree. Placing height can adjustable.
    7. Pull pin automatically return to avoid nozzles broken, pull pin not be stuck, big progress.
    8. Z axis detection, placement head can auto back to origin to prevent nozzles broke.

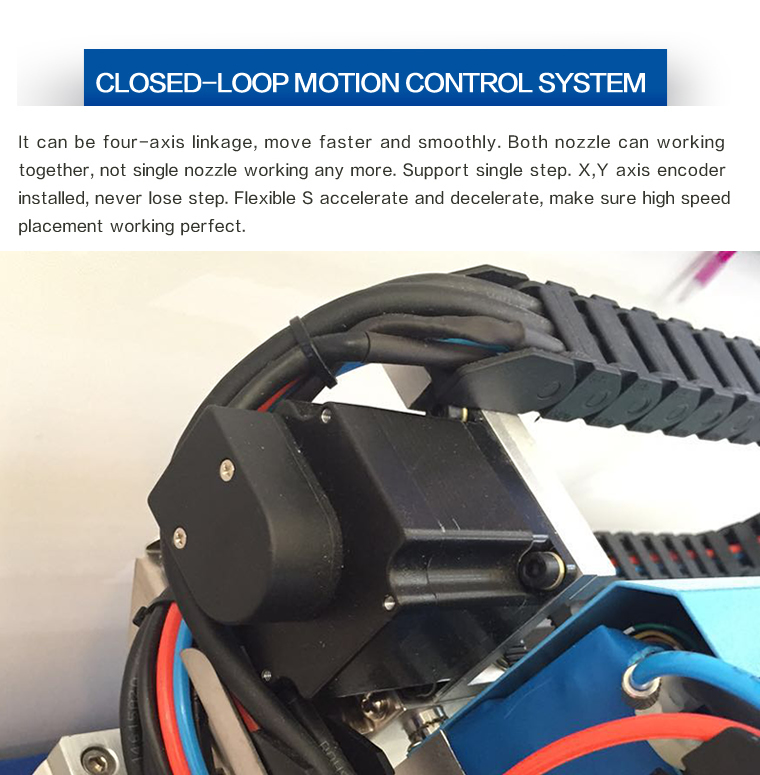

    9. Closed-loop contro, X,Y Axis with encoder, never loose steps.
    7. PCB by calibrate two components position ---- first and last componet, amend the offset of PCB.
    8. Calibration can be rapidly and accurately for PCB, do not need to care about offset, no need to calculate the input.
    9. Comes iwth vacuum testing, with automatic feeding; if one component suck crooked, it will automatically throw it to the feed zone, then pick a new one to mount again.
    10. If lack material it will automatic detection, machine will alarm and stop; after supply material, then continue working, no need to re-start.
    11. Support any number of PCB batch.
    12. If no PCB file, or don’t you don't have work file, you can creat a new file to program in machine directly.

    13. Support single step.


    Why choose Charmhigh?

    1.Professional desgin and room saved.
    2.User friendly operation, no need professional SMT engineer, entry-level device
    3.One machine - Integrated operation, no need extra pump or PC or any supporting facility
    4.High accuracy and reliability,make up the defection of manual work
    5.Cost efficient, reduce expense to own a professional automatic SMT production line
    6.International express with door to door service,3-5 working days delivery
    7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment.

    8.One machine equal to 5 soldering staff, easy manage and cost-saved. Good for small batch production.

    9.Charmhigh Is factory supply, all of our machines parts are researched and manufacturing by ourselves. After-service spare parts never stop.

    10. Charmhigh is a professional manufacturer of SMT Pick and Place machine since 2009. All the software are researched by ourselves.

    Standard Accessories for CHMT48VB:

    1) Pick and Place MachineCHMT48VB: 1
    2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
    3) 8G USB flash 1
    4) Power Cord: 1
    5) Pull pins: 2
    6) Coil for pull pin:1
    7) Grease: 1
    8) Hex wrench: 6
    9) Tweezers: 1
    10) Brush: 1
    11) English user manual: 1




    Warranty:
    The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
    support as well as a long term factory price supply.
    We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
    Each machine 100% test well before sent out.
    Tech support:
    Kimi Mob: 0086 135 106 75756
    Skype: kimiliu89 .
    E-mail: kimi@charmhigh-tech.com
    If you want to see more information and videos, please contact us by E-mail.
    We will response you at the first time.
